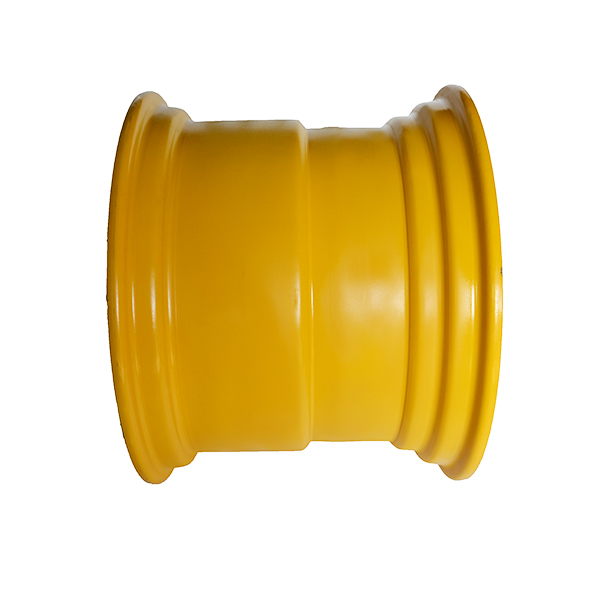

DW20X26
DW20x26
件
50
| | |||||
| Wheel Size | Offset | Center Hole | P.C.D | Bolt Hole | Rec, Tyre |
| 型号 | 偏距 | 中心孔 | 分布圆 | 螺栓孔 | 配用轮胎 |
| 7x12 | 0 | 161 | 205 | 6-Φ17 | 10.0-12 |
| 10.5X12 | 10 | 66 | 114 | 5- Φ16 | 26.0/8-12 |
| 7x15 | 10 | 60 | 114 | 4-Φ16 | 27x8.5-15 |
| 8x15 | 0 | 161 | 205 | 6-Φ20.5 | 27x10.5-15 |
| 9x15 | 0 | 140 | 190 | 6-Φ20.5 | 27x11-15 |
| 10x15 | 0 | 140 | 190 | 6-Φ20.5 | 27x12-15 |
| 13X15 | 10 | 161 | 205 | 6- Φ17 | 31*15.5-15 |
| 9X15.3 | 0 | 161 | 205 | 6- Φ17 | 11.00/12.00-15.3 |
| 13X15.3 | 10 | 161 | 205 | 6- Φ17 | 400/50-15.3 |
| 13X15.5 | 10 | 163 | 222.25 | 6- Φ17 | 400/60-15.3 |
| 8x16 | 0 | 161 | 205 | 6-Φ17 | 10.00-16 |
| 8.25x16.5 | 0 | 140 | 190 | 6-Φ20.5 | 10-16.5 |
| 8.25x16.5 | 40 | 151 | 200 | 8-Φ17 | 10-16.5 |
| 8.25x16.5 | 30 | 140 | 205 | 6- Φ15.7 | 10-16.5 |
| 9.75x16.5 | 40 | 151 | 200 | 8-Φ17 | 12-16.5 |
| 9.75x16.5 | 10 | 152 | 203 | 8-Φ17 | 12-16.5 |
| 9.75x16.5 | 25 | 152 | 203.2 | 8- Φ20 | 12-16.5 |
| 10.5x17.5 | 20 | 221 | 175 | 8-Φ17 | 14-17.5 |
| 10.5x17.5 | 60 | 221 | 275 | 8- Φ20 | 14-17.5 |
| 9X18 | 0 | 221 | 275 | 8- Φ17 | 11.00-18 |
| 11X18 | 0 | 221 | 275 | 8- Φ17 | 12.5-18 |
| 27/3.5-29 | 89 | 449 | 500 | 24- Φ24 | 33.25R29 |
| 13-20 | 32 | 304 | 360 | 8- Φ26 | 16/70-20 |
| 13x20 | 0 | 140 | 190 | 8- Φ20.5 | 405/70-20 |
| 13x20 | 20 | 315 | 380 | 8-Φ22 | |
| 13-24 | 1 | 354 | 404 | 12- Φ23 | 16/70-24 |
| 12.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 425/65R22.5 |
| 13.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 435/45R22.5 |
| 14.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 445/65R22.5,435/45R22.5 |
| 16.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 495/45R22.5 |
| 18.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 555/60R22.5 |
| 20.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 555/60R22.5 |
| 16x24 | 48 | 281 | 335 | 10- Φ24 | 19.5L-24 |
| 16x26 | 48 | 281 | 335 | 10- Φ24 | 18.4L-26 |
| 14x28 | 0 | 281 | 335 | 10- Φ24 | 16.9-28 |
| 16x30 | 0 | 281 | 335 | 10- Φ24 | |
| 14x22.5 | 40 | 281 | 335 | 10- Φ26 | 18X22.5 |
| | |||||
| Wheel Size | Offset | Center Hole | P.C.D | Bolt Hole | Rec, Tyre |
| 型号 | 偏距 | 中心孔 | 分布圆 | 螺栓孔 | 配用轮胎 |
| 7x12 | 0 | 161 | 205 | 6-Φ17 | 10.0-12 |
| 10.5X12 | 10 | 66 | 114 | 5- Φ16 | 26.0/8-12 |
| 7x15 | 10 | 60 | 114 | 4-Φ16 | 27x8.5-15 |
| 8x15 | 0 | 161 | 205 | 6-Φ20.5 | 27x10.5-15 |
| 9x15 | 0 | 140 | 190 | 6-Φ20.5 | 27x11-15 |
| 10x15 | 0 | 140 | 190 | 6-Φ20.5 | 27x12-15 |
| 13X15 | 10 | 161 | 205 | 6- Φ17 | 31*15.5-15 |
| 9X15.3 | 0 | 161 | 205 | 6- Φ17 | 11.00/12.00-15.3 |
| 13X15.3 | 10 | 161 | 205 | 6- Φ17 | 400/50-15.3 |
| 13X15.5 | 10 | 163 | 222.25 | 6- Φ17 | 400/60-15.3 |
| 8x16 | 0 | 161 | 205 | 6-Φ17 | 10.00-16 |
| 8.25x16.5 | 0 | 140 | 190 | 6-Φ20.5 | 10-16.5 |
| 8.25x16.5 | 40 | 151 | 200 | 8-Φ17 | 10-16.5 |
| 8.25x16.5 | 30 | 140 | 205 | 6- Φ15.7 | 10-16.5 |
| 9.75x16.5 | 40 | 151 | 200 | 8-Φ17 | 12-16.5 |
| 9.75x16.5 | 10 | 152 | 203 | 8-Φ17 | 12-16.5 |
| 9.75x16.5 | 25 | 152 | 203.2 | 8- Φ20 | 12-16.5 |
| 10.5x17.5 | 20 | 221 | 175 | 8-Φ17 | 14-17.5 |
| 10.5x17.5 | 60 | 221 | 275 | 8- Φ20 | 14-17.5 |
| 9X18 | 0 | 221 | 275 | 8- Φ17 | 11.00-18 |
| 11X18 | 0 | 221 | 275 | 8- Φ17 | 12.5-18 |
| 27/3.5-29 | 89 | 449 | 500 | 24- Φ24 | 33.25R29 |
| 13-20 | 32 | 304 | 360 | 8- Φ26 | 16/70-20 |
| 13x20 | 0 | 140 | 190 | 8- Φ20.5 | 405/70-20 |
| 13x20 | 20 | 315 | 380 | 8-Φ22 | |
| 13-24 | 1 | 354 | 404 | 12- Φ23 | 16/70-24 |
| 12.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 425/65R22.5 |
| 13.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 435/45R22.5 |
| 14.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 445/65R22.5,435/45R22.5 |
| 16.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 495/45R22.5 |
| 18.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 555/60R22.5 |
| 20.00X22.5 | 0 | 281 | 335 | 10- Φ26 | 555/60R22.5 |
| 16x24 | 48 | 281 | 335 | 10- Φ24 | 19.5L-24 |
| 16x26 | 48 | 281 | 335 | 10- Φ24 | 18.4L-26 |
| 14x28 | 0 | 281 | 335 | 10- Φ24 | 16.9-28 |
| 16x30 | 0 | 281 | 335 | 10- Φ24 | |
| 14x22.5 | 40 | 281 | 335 | 10- Φ26 | 18X22.5 |
